HME Gateway Installation Guide

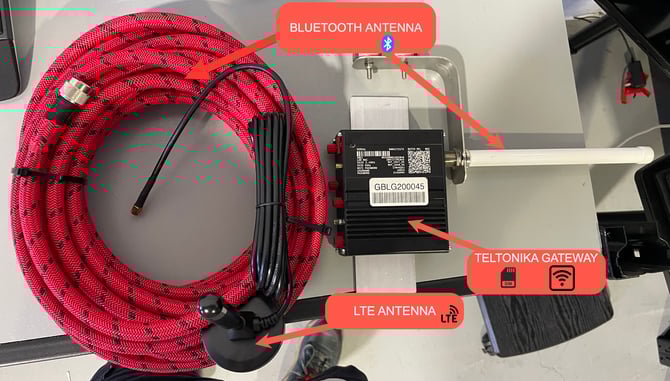

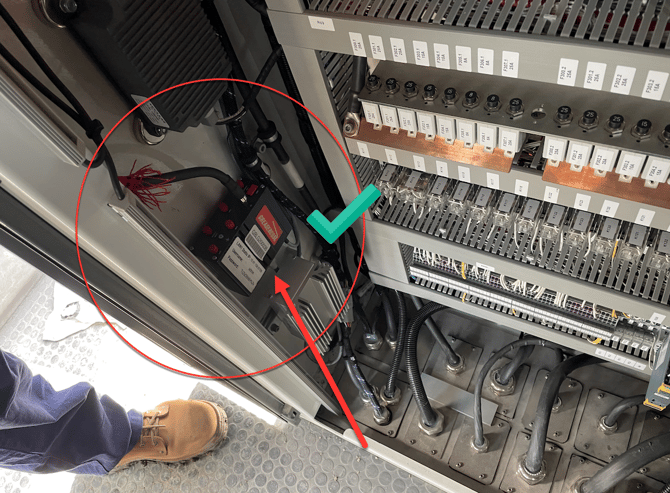

Install Greaseboss HME Gateway  (teltonika) with external bluetooth anntenna for endpoint pairing / syncing

1. Sim card
   ( GB supplied or customer supplied )
2. Site Wi-Fi

• Connect BLE antenna
• Connect LTE antenna
• Connect power by 12v deutsch plug supplied.

For installing the BLE Antenna you will need the following:

GreaseBoss Provided:

• Antenna
• Pole Mounting Bracket
• Amalgamating Tape

User Provided:

• Electrical Tape
• The antenna has an O-ring designed to ensure the Antenna is weatherproof

---------------------------------------------------------------

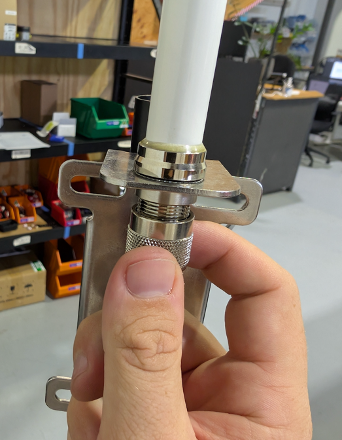

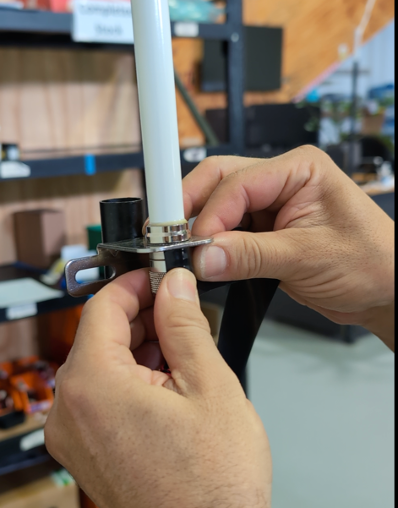

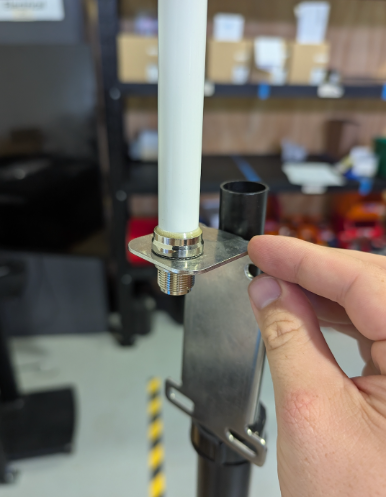

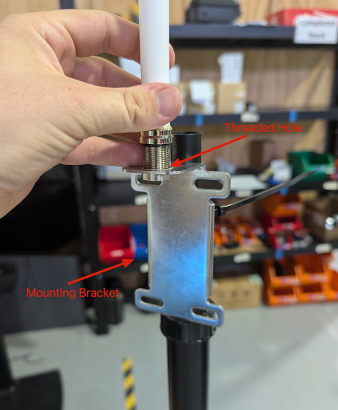

• Thread antenna through the threaded hole on the bracket until it is tightly wound. Note the Bracket is design to be pole mounted.

•
  ---------------------------------------------------------------
•
•

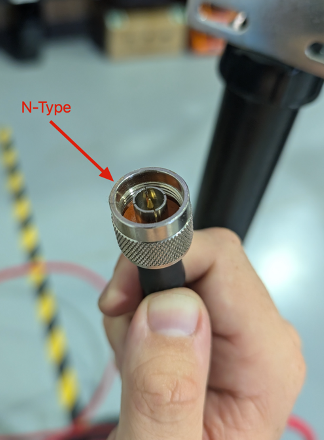

• Take the N-type connector of the braided cable and connect it to the Antenna, be sure there is no gap between the threads.

  ---------------------------------------------------------------
•
•

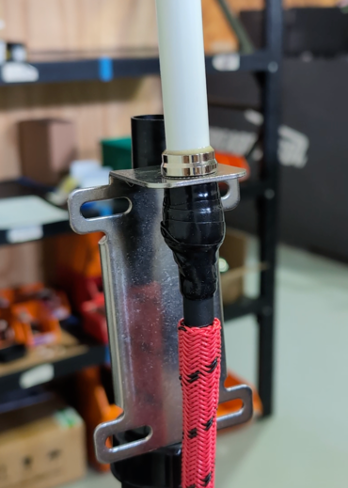

•  wind the tape around the connection starting from the bottom of the plate down to the N-type connector of the 15m Cable. This will help prevent water disrupting the connection.

• Cover amalgamating tape with Electrical tape, this will provide extra protection from weather and UV.

 ------------------------------------------------------------------

• secure all cabling

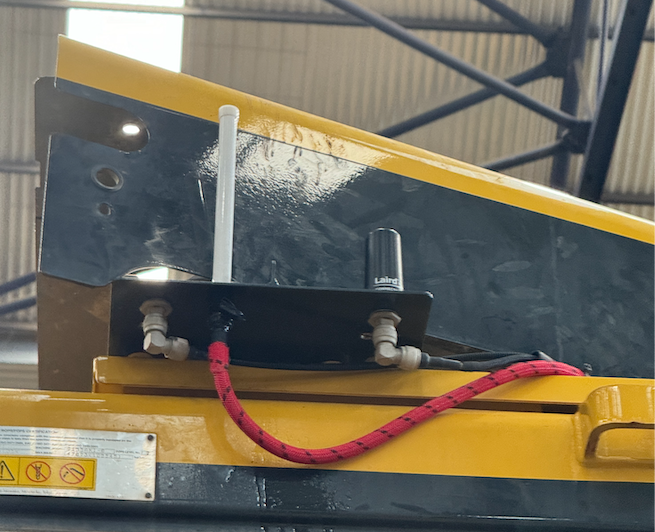

• consider mounting position for best overall signal strength

• once powered check for power led (PWR)

• when gateway installed completly

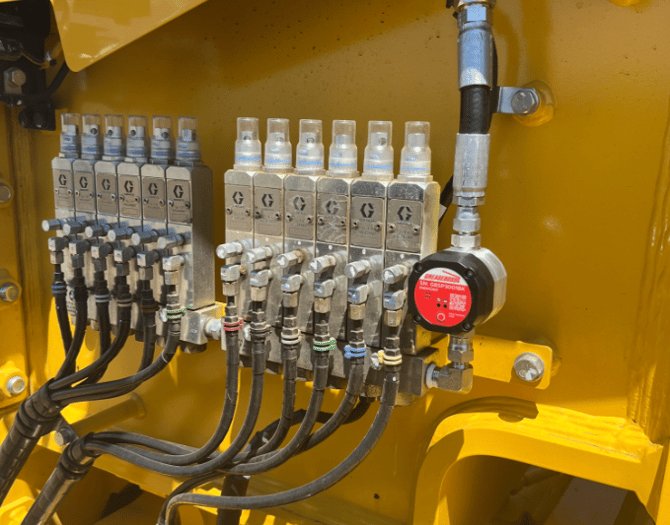

• perform range testing with an endpoint at all the locations to confirm connectivity
• • Confirm Endpoint in signal range of gateway with manual sync button hold ( 7 secs )

  • Wait for long green flash to confirm successful sync / pairing with gateway

  • If sequence finsihes with red. possibly out of signal area

  • minimum attempt three consecutive failures to identify failure
  • consider antenna location or second gateway to resolve
  • repeat from process 5 if antenna relocated

• Confirm Endpoint in signal range of gateway with manual sync button hold ( 7 secs )

• Wait for long green flash to confirm successful sync / pairing with gateway

• If sequence finsihes with red. possibly out of signal area

• consider Antenna location or second teltonika to resolve



Confirm cloud connectivity

• login to your account
• goto site explorer > location > asset > endpoint

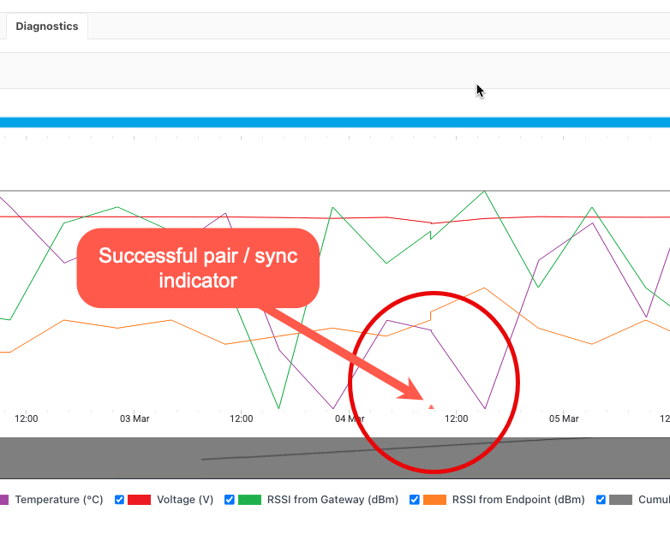

• check for in diagnostics tab on all endpoints to confirm successful sync from gateway to cloud
