We are pleased to introduce the Site Explorer, a hierarchical view of your site, which allows you to analyse your grease event data for points and endpoints at various levels.
Here’s what we cover below:

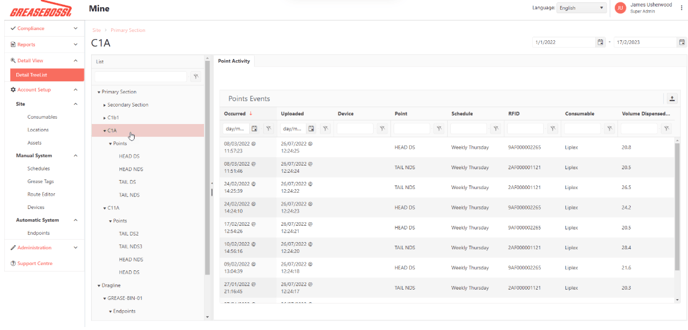

Asset
Select an asset within the tree, and the grease events within the specified date range will appear for all points and endpoints associated with that asset. Point activity and Endpoint activity are shown in different tabs.

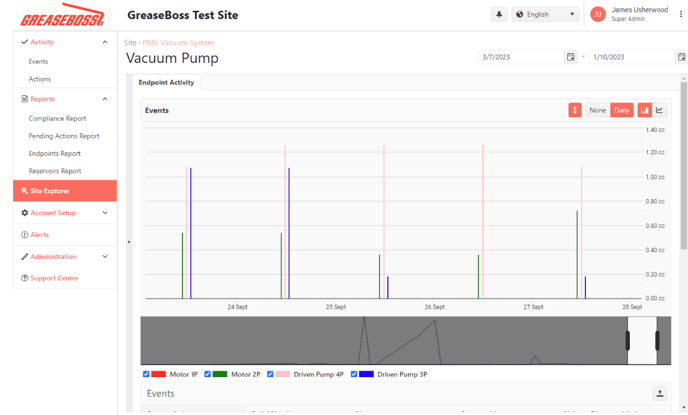

Asset chart
The asset chart has been introduced that display all endpoint activity for that asset on a single chart.
-
Endpoints can be toggled on and off.
-
None and Daily aggregation can be selected.
-
Data can be visualised on a stem or line chart.

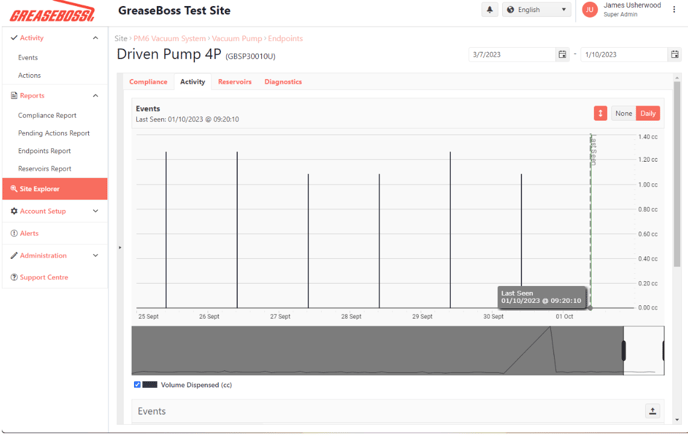

Last seen visualised on charts
When the endpoint was last seen is now being visualised on the compliance and activity charts.
Point
Select a point within the tree, and the grease events within the specified date range will be displayed in the activity tab.

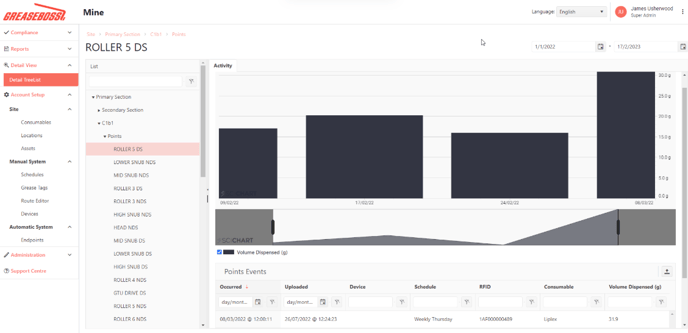

Activity Tab
The activity tab shows the grease event in graphical and tabular formats.
Endpoint
Select an Endpoint within the tree, and flow, diagnostic and metrics events will be displayed in their associated tabs.

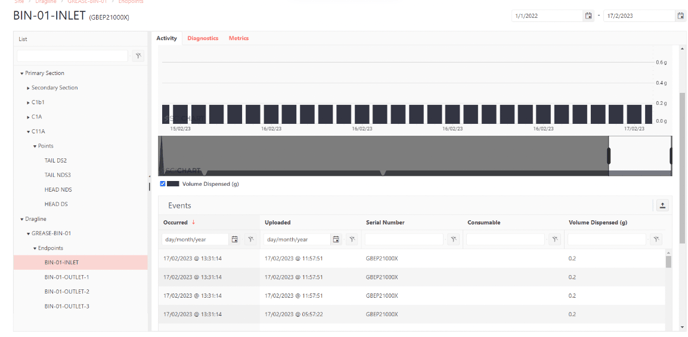

Activity Tab
The activity tab shows flow events in graphical and tabular formats.

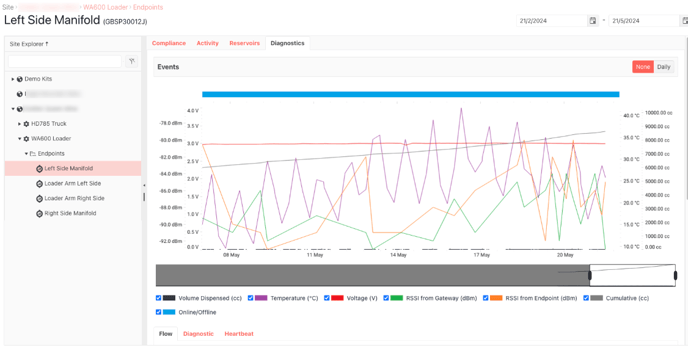

Diagnostics Tab
The diagnostic tab shows the voltage and temperature of the endpoint.

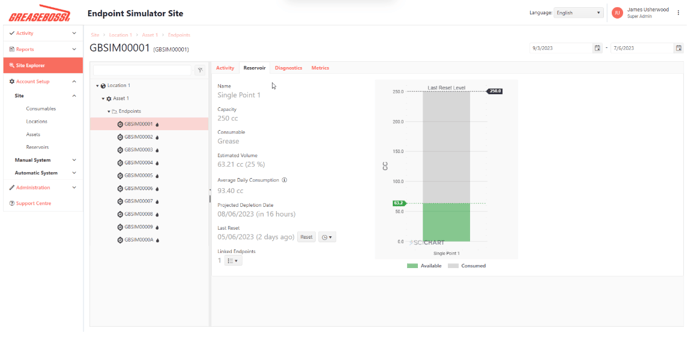

Reservoir tab
A reservoir tab has been added for Endpoints, if a reservoir is linked to an Endpoint then an icon will be displayed in the navigational tree.

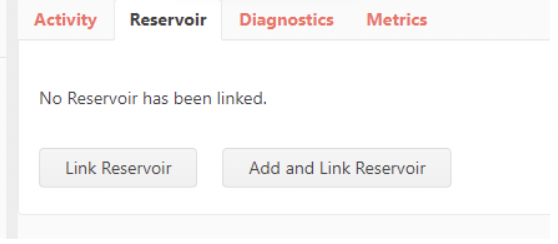

If no reservoir has been linked to an Endpoint, then the reservoir tab will display the following options which allows you to either link to an existing reservoir or add a new reservoir.
